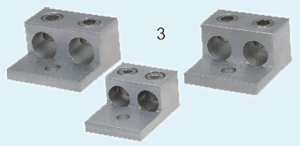

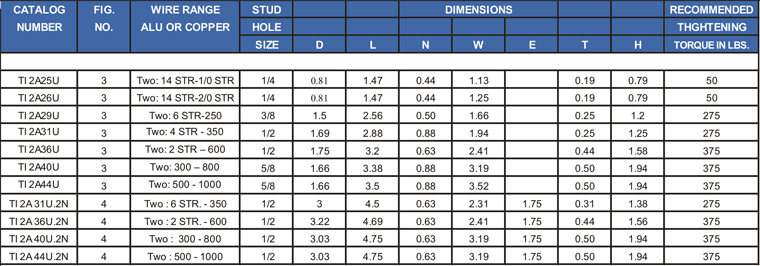

| Two Conductor |
These dual rated two-conductor lugs are constructed from high strength Aluminum alloy and electro tin plated to provide low contact resistance.
* Lugs can be made with multiple mounting holes on request. |
 |
 |
 |
 |
| _______________________________________________________________________________________________ |

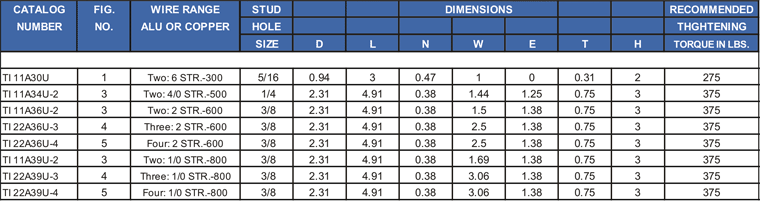

| Three & Four Conductors (Stacked Lugs) |
Dual-rated panel board lugs are constructed from high strength extruded aluminum alloy and electro tin plated to provide low contact resistance.
* Lugs can be made with multiple mounting holes on request. |
 |
 |
